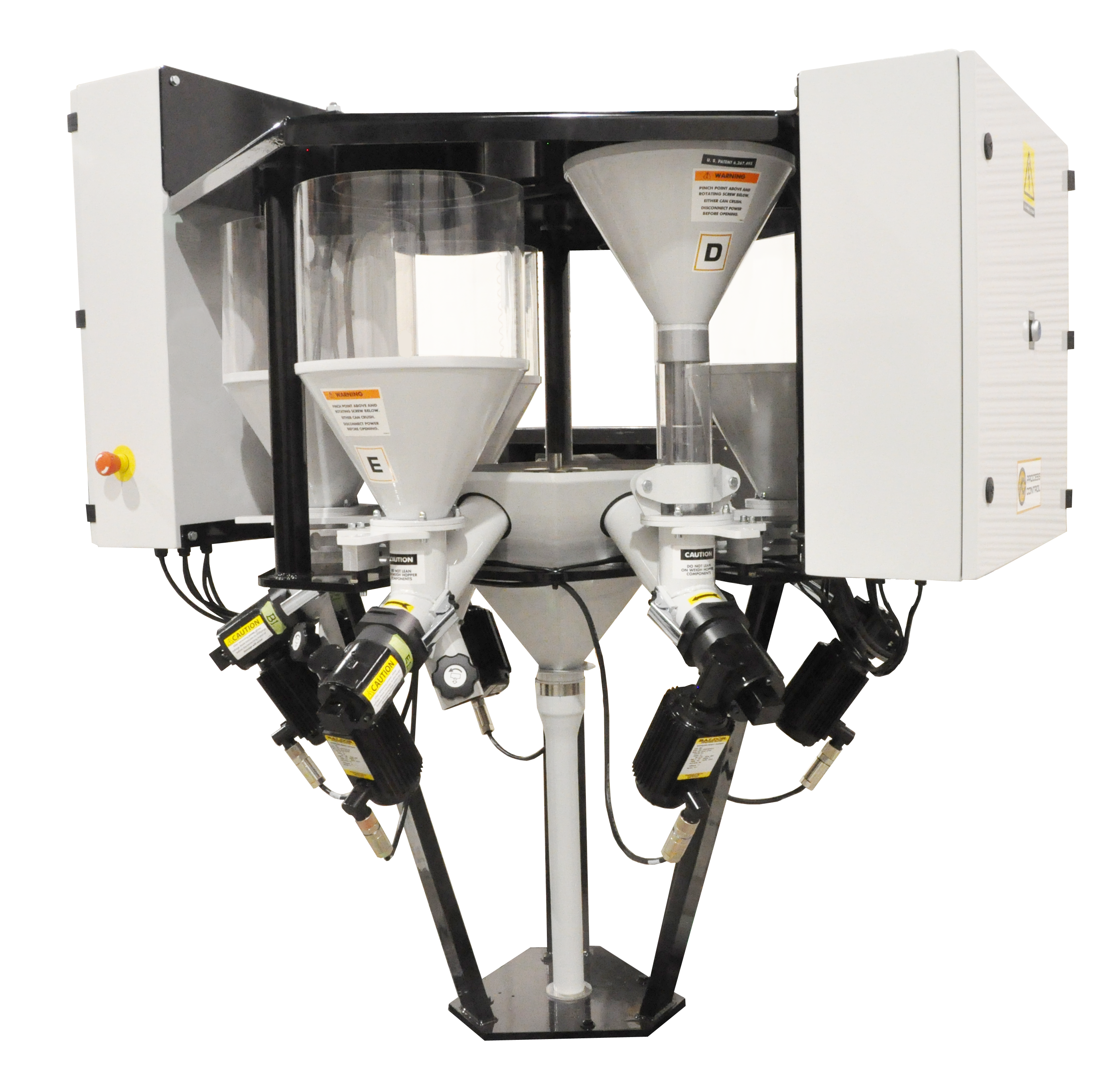

X2DX2D6, small frame, 6-element complements the X2D4 four element frame, and completes the X2 Series along with the X2L4 and X2L6.


  • Color touch screen operator interface with new “off-the-shelf” control
    • Blender monitors weight loss of each ingredient hopper for precise control of blend ratios
    • Weighing system resolution is 1:1,000,000 for maximum accuracy
    • Storage for 400 blend recipes in battery-backed memory
    • Multiple alarm levels with visual display and contact closures
    • Color touchscreen display for easy viewing of inventory and performance data
  • Brushless DC gear motors with closed-loop control for precise ingredient measuring
    • Superior reliability and long lifespan
    • Require only two power/gear ratio combinations to cover the required RPM range
  • Available with integral or remote downcomer
  • Individual weighed ingredient hoppers with easy-to-use drains
  • Interchangable metering units with quick disconnect
  • Integral loading platform for mounting vacuum receivers
  • Designed for easy clean-out and quick changeover

Click here to download the X Series 2 Continuous Blender cut sheet and view X2D6 specs and dimensions.
